• LED Moving Head Light

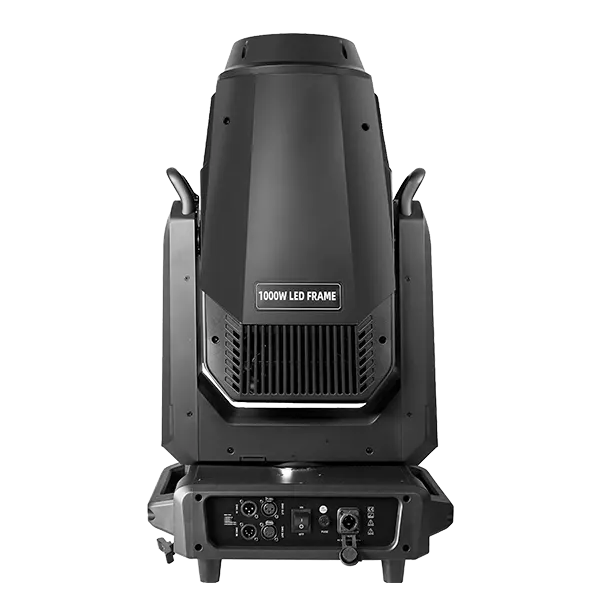

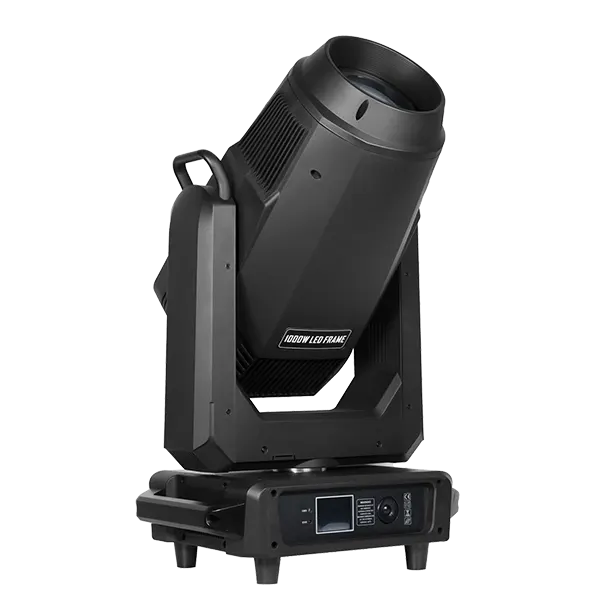

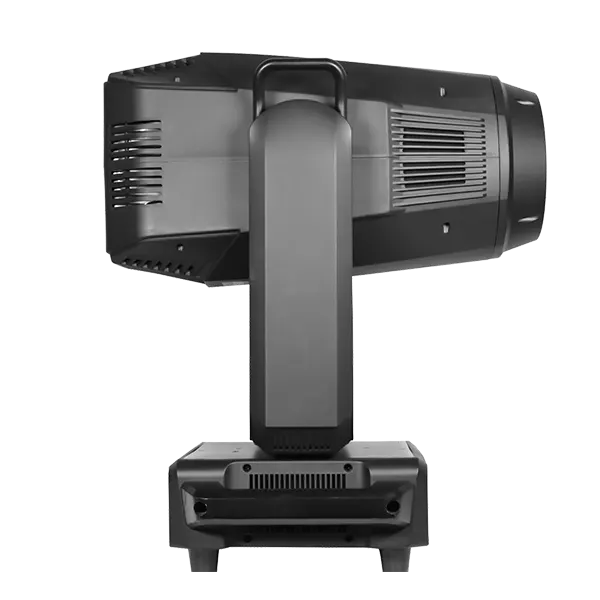

1000W LED with CMY Moving Head Beam Spot Wash Framing 4-in-1 Light

1000W LED with CMY Moving Head Beam Spot Wash Framing 4-in-1 Light

LED1000BSWPro-2

LED1000BSWPro-3

LED1000BSWPro-4
1000W LED with CMY Moving Head Beam Spot Wash Framing 4-in-1 Light

Professional 1200W LED Moving Head Light – Powerful, Versatile & Stunning

Elevate your stage productions, concerts, and events with our high-performance 1200W LED Moving Head Light, designed for unmatched brightness, precision, and dynamic effects.

Key Features:
✔ Ultra-Bright 1000W LED
 (20,000hrs lifespan) with 7000K crisp white light – perfect for large venues and outdoor stages.
✔ Smooth 5°–50° zoom & precise framing – uniform spot consistency for flawless beam control.
✔ Advanced CMY mixing & CTO correction (3200K–7200K) – full-color creativity at your fingertips.
✔ Dynamic effects: 9 fixed + 6 rotating gobos, 4-facet prism, flame/water simulation, and 0–25Hz strobe.
✔ 4-blade framing + linear frost – sculpt light with studio-grade precision.
✔ Silent, smart cooling – maintains peak performance even during extended use.

Ideal for:

  • Concerts & Festivals – Command attention with vibrant colors and sharp beams.

  • Theaters & Studios – Achieve Hollywood-grade lighting with high CRI (Ra>90).

  • Corporate Events & Weddings – Elegant gobos and smooth dimming for immersive atmospheres.

Control & Convenience:

  • 39 DMX channels, RDM, sound activation, and touchscreen operation.

  • Sleek, rugged design (34kg) with foldable hooks for easy rigging.

Transform any space into a visual masterpiece – where power meets artistry.

(Includes flight case option for touring professionals.)



InquiryDownloadVideo
Share to
Detailed

Technical Specifications

Electrical & Power Specifications

  • Input Voltage: AC 90–240V, 50/60Hz

  • Rated Power: 1,200W

  • Light Source: 1,000W high-power LED module

  • Light Source Lifespan: 20,000 hours

Optical Performance

  • Color Temperature: 7,000K (adjustable via CTO: 3,200K–7,200K)

  • Color Rendering Index (CRI):

    • Standard Mode: Ra > 70

    • High Rendering Mode: Ra > 90

  • Optical System: High-precision combined lens assembly

  • Zoom Range: 5°–50° (high-speed linear zoom, uniform spot consistency at all ranges)

  • Focusing: Linear adjustment with high-precision glass lenses

Beam & Effects

  • Dimming: 0–100% linear dimming

  • Strobe: 0–25 Hz (adjustable pulse strobe, sync/async modes)

  • Frost Effect: 0–100% linear frost + CRI filter for soft, natural diffusion

  • Prism: 4-facet rotating prism (bi-directional rotation)

  • Effect Wheel: Dynamic simulation (flames, water flow, etc.)

Color & Gobo Systems

  • Color System:

    • 4 fixed colors + open

    • Bidirectional rainbow, half-color, and gradient effects

  • CMY Mixing: Full linear CMY color mixing

  • Fixed Gobos: 9 replaceable gobos + open (gobo shake function)

  • Rotating Gobos: 6 rotating glass gobos + open (independent bi-directional rotation)

Framing & Shaping

  • Framing System: 4 independent motorized shutters (90° rotatable)

Movement & Control

  • Pan/Tilt: 540° (pan) / 270° (tilt), 16-bit precision

  • Control Protocols: DMX512, RDM, Master/Slave, Sound-Activated, Auto Mode

  • DMX Channels: 39CH

  • Software Upgrade: Online firmware updates via DMX

Display & Connectivity

  • Display: 2.8" LCD touchscreen + physical keys (180° reversible, bilingual UI)

  • Connectors:

    • 3-pin & 5-pin XLR (DMX In/Out)

    • PowerCON power input

Cooling & Safety

  • Cooling System: Intelligent variable-speed fan with temperature sensor

  • Energy-Saving Mode: Auto sleep when idle

  • Housing: Flame-retardant, high-temperature resistant

Physical Specifications

  • Dimensions: 43 × 29 × 75 cm (L × W × H)

  • Net Weight: 34 kg

  • Mounting: Foldable integrated hanging bracket

Packaging Options

  1. Standard Carton:

    • Dimensions: 75 × 71 × 62 cm

    • Gross Weight: 42 kg

  2. 2-in-1 Flight Case:

    • Dimensions: 95 × 58 × 83 cm

    • Gross Weight: 98 kg
