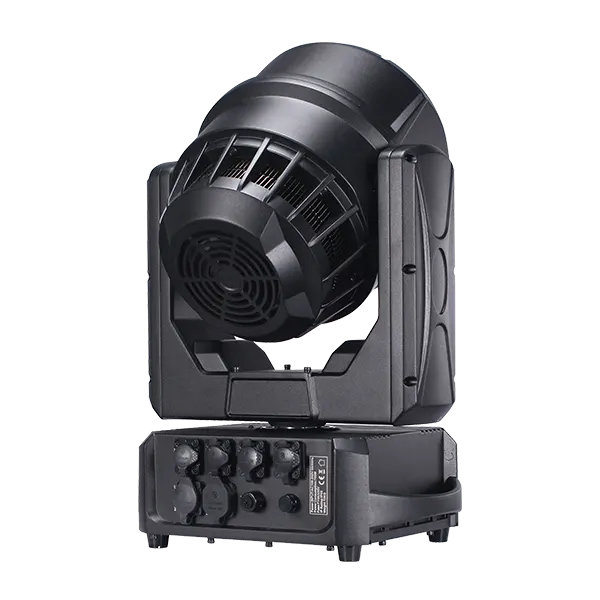

7pcs×60W RGBW 4-in-1 OSRAM LED IP65 Waterproof Moving Head Light

7pcs×60W RGBW 4-in-1 OSRAM LED IP65 Waterproof Moving Head Light

M760IP-2

M760IP-3

M760IP-4

M760IP-5

M760IP-6

M760IP-7

M760IP-8

M760IP-9

M760IP-10

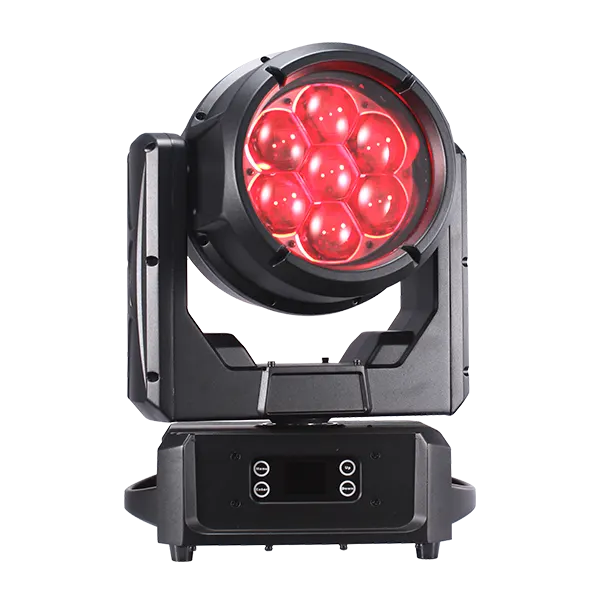

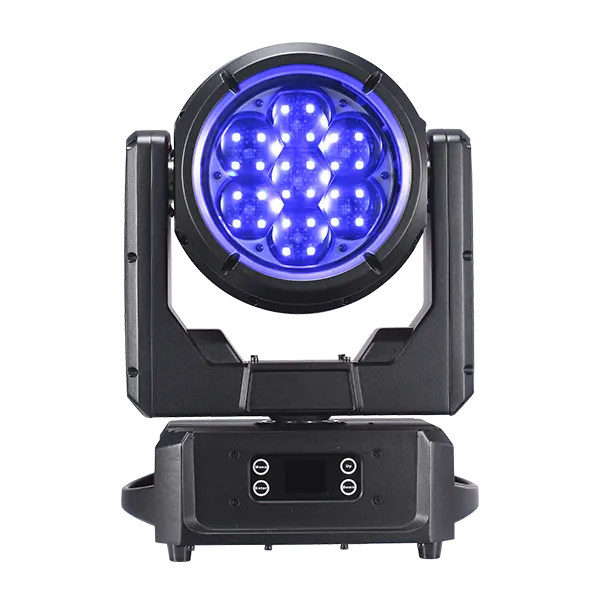

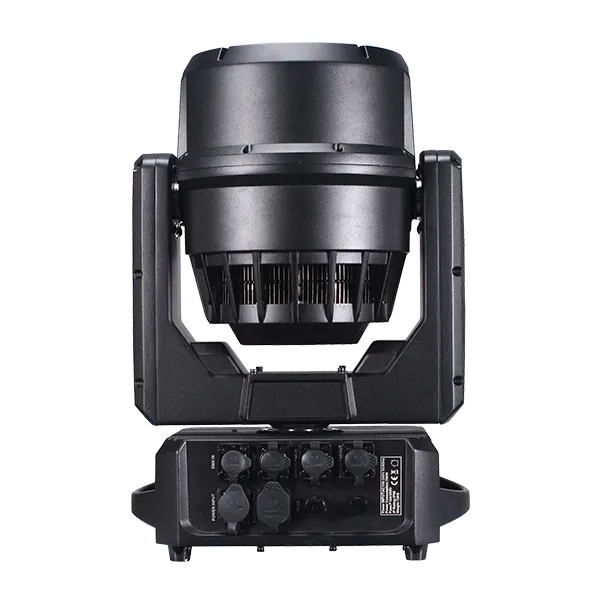

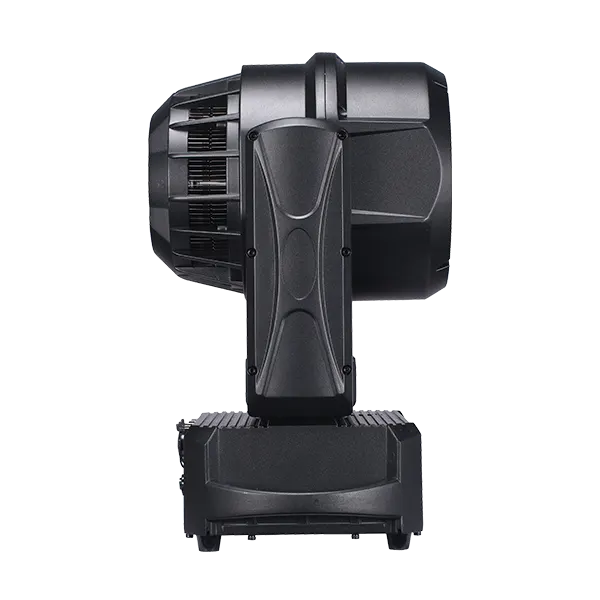

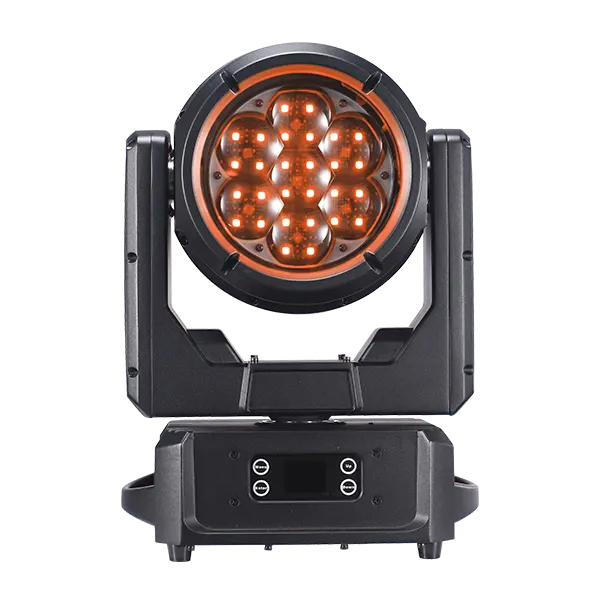

7pcs×60W RGBW 4-in-1 OSRAM LED IP65 Waterproof Moving Head Light

Powerful. Precise. Professional.

Elevate your stage, studio, or event lighting with this high-performance LED moving head. Featuring 7×60W OSRAM Ostart RGBW LEDs and 28×RGB background LEDs, it delivers stunning 28,000 lumens with exceptional color accuracy (CRI ≥80) and a wide CTO range (2,000K–8,000K).

With motorized zoom (3°–45°), 540° pan / 270° tilt, and 16-bit precision, it ensures smooth, dynamic movements for concerts, theaters, and architectural lighting. Advanced pixel control, lens rotation, and IP65 waterproofing make it ideal for both indoor and outdoor productions.

Durable (50,000-hour lifespan) and versatile (DMX/RDM/sACN/ArtNet-optional), this fixture is built for professionals who demand brilliance and reliability. Light up any space with unmatched clarity and control.

(Dimensions: 456×310×263mm | Weight: 12kg | Power: 520W)

InquiryDownloadVideo
Share to
Detailed

Technical Specifications

Electrical & Power

  • Input Voltage: AC 100–240V, 50/60Hz (Auto-Switching)

  • Power Consumption: 520W (Max)

Light Source & Output

  • Primary LEDs: 7 × 60W RGBW 4-in-1 (OSRAM OSTAR®)

  • Auxiliary LEDs: 28 × RGB 3-in-1 (Background Illumination)

  • Total Luminous Flux: 28,000 lm (@ 3° Beam, 5m Distance)

  • Color Rendering Index (CRI): ≥80

  • Correlated Color Temperature (CCT): 2,000K–8,000K (Continuous CTO Adjustment)

Optical System

  • Motorized Zoom Range: 3°–45° (High-Efficiency Linear Zoom)

  • Lens Rotation: Supported

  • Pixel-Level Control: Yes

Movement & Precision

  • Pan/Tilt Range: 540° (Pan) / 270° (Tilt)

  • Positioning Resolution: 16-Bit Fine Control

  • Scanning: Electronic Error Correction

Control & Protocols

  • Supported Protocols: DMX512, RDM, sACN, Art-Net (Optional)

Durability & Construction

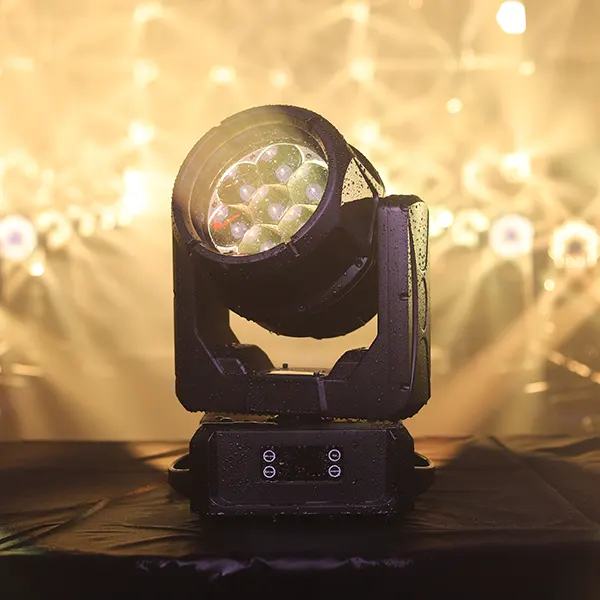

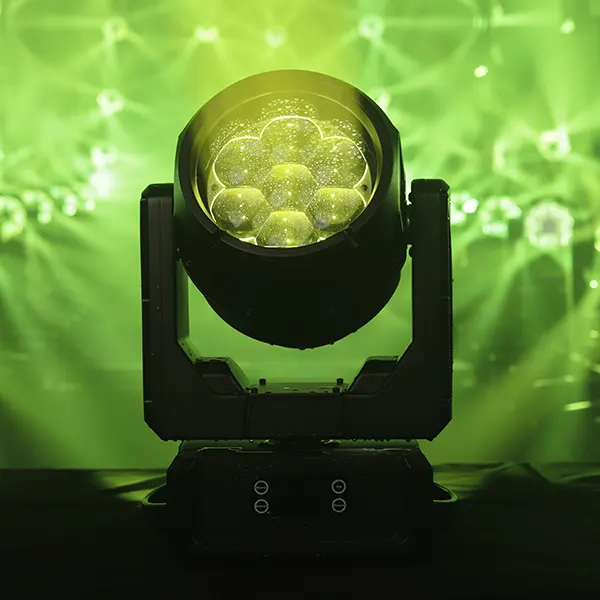

  • Ingress Protection: IP65 (Dustproof & Water-Jet Resistant)

  • MTBF (Lifespan): 50,000 Hours (LED Source)

Physical Dimensions

  • Unit Dimensions (W×H×D): 456 × 310 × 263 mm

  • Packaging Dimensions (W×H×D): 510 × 360 × 310 mm

  • Weight: 12 kg (Net) / 15 kg (Gross)
