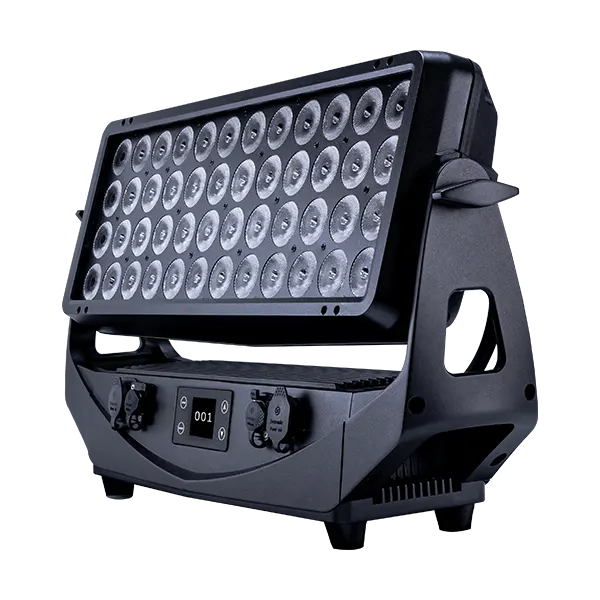

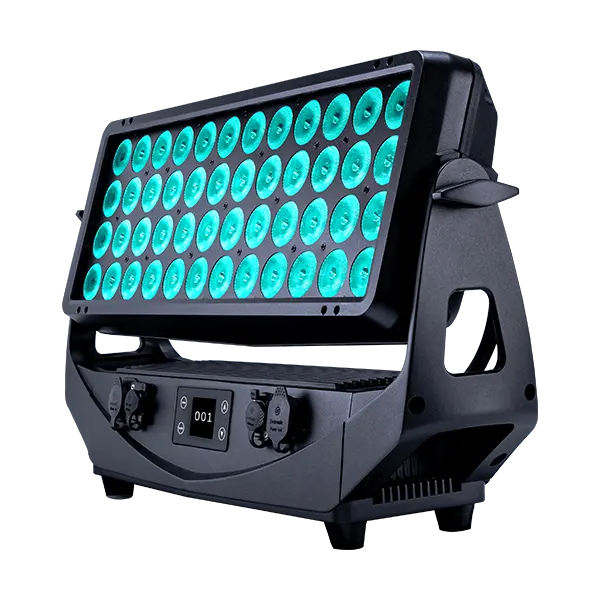

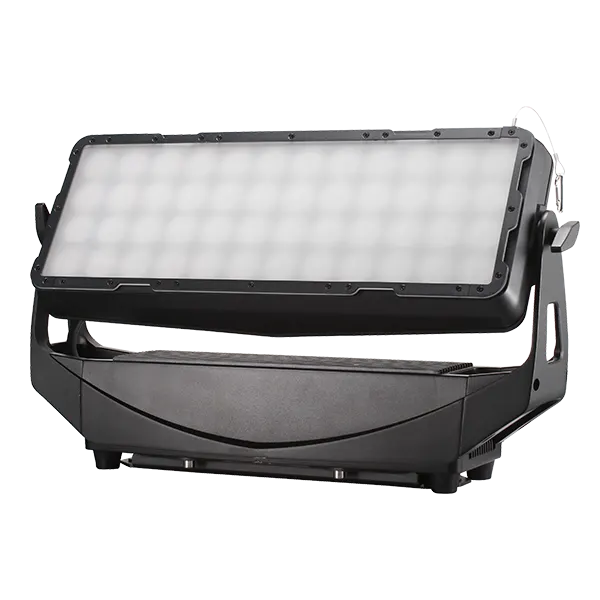

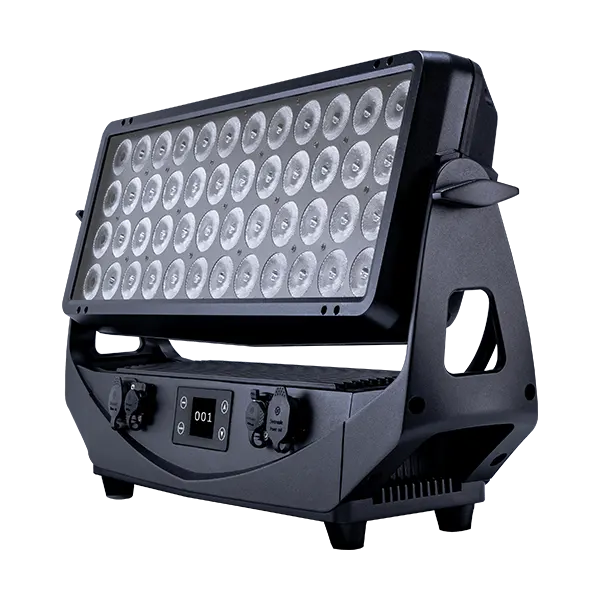

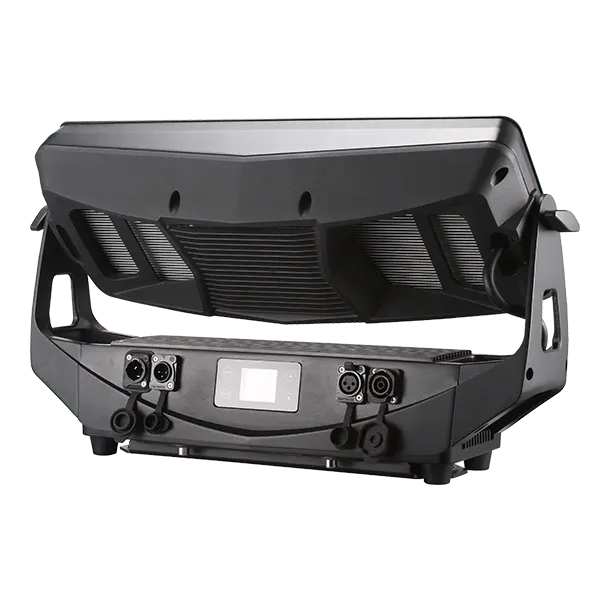

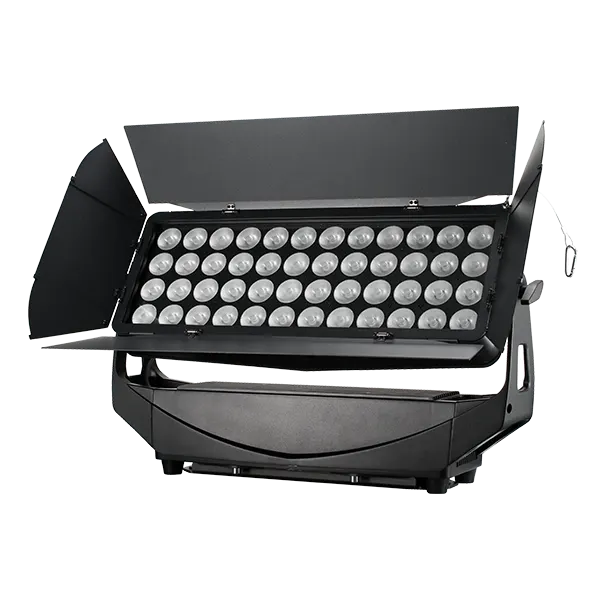

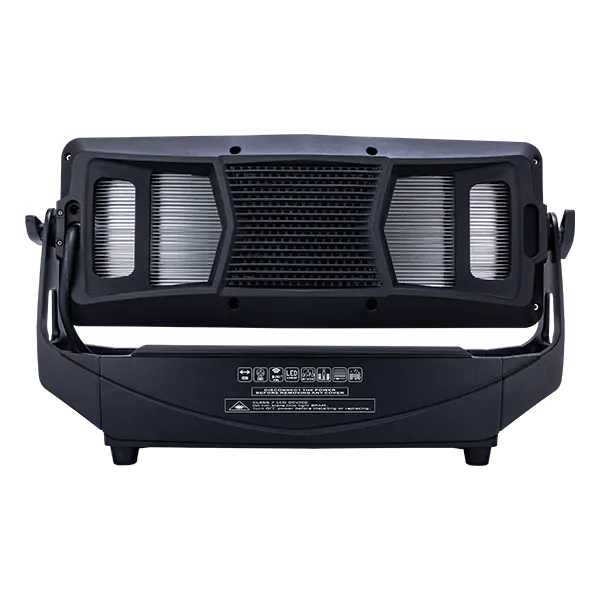

WWL4820IP – Professional 48x20W RGBALC 6-in-1 LED Wall Wash Light
Elevate your lighting design with the WWL4820IP, a high-performance IP65 waterproof LED wall washer that delivers stunning RGBALC color mixing, flicker-free operation for TV broadcasts and film, and exceptional brightness (23,787 lm). With electronic color temperature adjustment (2000K–10,000K), smooth dimming (0–100%), and multiple beam angles (25°/35°/45°), this fixture is perfect for architectural lighting, stage productions, concerts, and events.
Featuring DMX512/RDM control, Master/Slave modes, and optional wireless control, it ensures seamless integration into any professional setup. The die-cast aluminum housing, active cooling, and IP65 rating guarantee durability in harsh environments (–30°C to 50°C).
Ideal for:
Live shows – Vivid, dynamic colors with smooth transitions.
Studio lighting – Flicker-free for flawless camera capture.
Facade & landscape lighting – IP65 protection for outdoor use.
Themed installations – Macro effects and rainbow modes for immersive experiences.
Includes mounting clamps, safety cables, and a Seetronic PowerCon TRUE1 power link for quick setup. Powerful, versatile, and built to last—light up your vision with the WWL4820IP.
*(Net weight: 11 kg | Dimensions: 570×150×320 mm | 10/14/17/21CH modes)*
WWL4820IP 48pcs × 20W RGBALC 6in1 LED Wall Wash Light IP65 waterproof
LED Wall Wash Light.
Flicker-free function for TV broadcast and film.
● LED: 48pcs×20W RGBALC 6in1 LED
● Color Temperature Filter: Electronic, 2000K~10000 K
● Service Life: 50,000~100,000 hours
● Color System: RGBALC uniform color mixing system and rainbow effect, creating the effect of endless dynamic color change, built-in macro function
● Beam Angle: 25° / 35° / 45° optional (with high-performance acrylic lens)
Luminous Flux with all LEDs turned on: 23787 lm, 7588 lux at a distance of 5 m
Luminous Flux, red: 5258 lm, 1790 Lux per 5 m
Luminous Flux Green: 10343 lm, 3156 lux at 5 m
Luminous Flux Blue: 1794 lm, 535 lux at 5 m
Luminous Flux Lemon: 10193 lm, 3316 lux per 5 m
● Dimmer: linear dimming from 0 to 100%
● Strobe Light: 0~20 Hz
● Control Modes: DMX 512, RDM (remote control of devices), Master\slave, Automatic (wireless control is optional in Sweden)
● Channels: 10/14/17/21CH
● DMX512 Connector: 3-pin XLR input and output of Seetronic IP65
● Power Connector: Input and output of Seetronic PowerCon TRUE1 IP65
● Shielded input protection to ensure stable signal without interference.
● Degree of Waterproofing: IP65
● Cooling: active heat dissipation, forced air supply, temperature control, overheating protection
● Body Material: Die-cast aluminum
● Display: 1.77-inch LCD display with 4 touch buttons, automatic display shutdown function.
● Input Voltage: 90~240 VAC, 50/60 Hz
● Rated Power Consumption: max. 1100 W
● Working Environment: -30℃~50℃
● Standing Position: Feet on the floor
● Hanging: Omega bracket with 1/4 turn mounting (one pair)
● Safety Rope Attachment: Folding hinges
● Net Weight: 11.0kg
● Mounting Dimensions: L570*W150*H320 (mm)
Scope of delivery:
1) Clamp - 2 pcs.
2) Safety cable - 1 pc.
3) A bracket for connecting the device with a clamp - 2 pcs.
4) The PowerCon power cord.
5) PowerCon - PoweCON power cord (Link), cable length: 2 meters, cable cross-section: 3 x 1.5 mm².
