PBL1830 Pixel Bar – Professional 6-in-1 LED Lighting for Stunning Visual Impact
Elevate your stage, studio, or event lighting with the PBL1830 Pixel Bar—a high-performance 18x30W RGBWAUV 6-in-1 LED fixture delivering vibrant, 16-bit color mixing and precise beam control. With 18° spot optics, quick-release diffusion filters, and 52mm pixel pitch, it creates smooth washes or sharp pixel effects, perfect for live concerts, theater productions, clubs, and architectural lighting.
Key Features:
✔ 6-in-1 RGBWAUV LEDs (50,000-hour lifespan) for rich, dynamic colors
✔ Flexible control (DMX512, sound-active, master/slave, RDM) with 11-119 channels
✔ 2200K-8500K adjustable CTO for natural or dramatic tones
✔ High-resolution dimming & strobe (1-30Hz) for seamless transitions
✔ Multiple mounting options (horizontal, vertical, hanging, floor-standing)
✔ OLED display & PowerCon/XLR connectors for easy setup
Ideal for:
Stage backlighting & immersive environments
DJ setups & nightclub effects
TV/film production & photo studios
Trade shows & architectural accents
Compact yet powerful (600W), with IP20 protection and low noise, the PBL1830 comes ready-to-use in a transport case (6 units). Includes clamps, safety cables, and PowerCon cords for quick installation.
Light up your creativity—unleash precision and brilliance with the PBL1830!

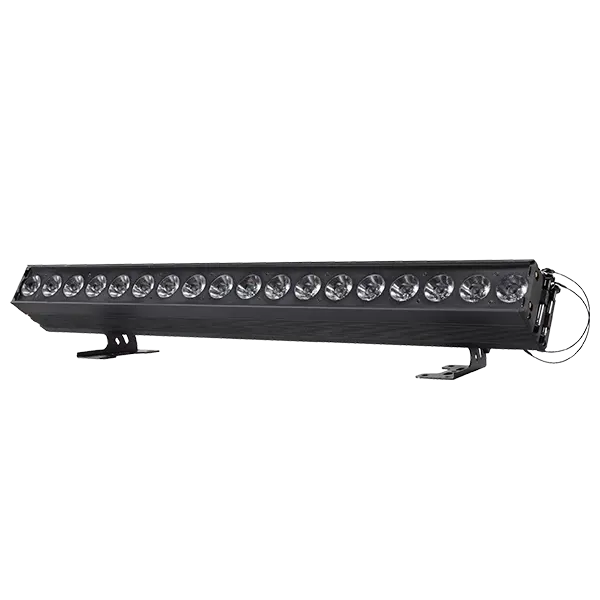

PBL1830 Pixel Bar 18X30W RGBWAUV 6in1 LED Strip Light
LED Pixel Bar Light
● Light Source: 18PCS 30W RGBWAUV 6inl LEDs, Average LED life: 50,000 hours.
● DMX Control Channels: 11/29/108/119 channels. Pixel control. Pixel pitch: 52 mm.
● RGBWAUV 16-bit color mixing.
● Filter: quick-release diffusion filter, Beam operation mode: wash.
● Spotlight opening angle: 18°
● Control Mode: DMX512, auto start, master/slave, active sound, RDM support.
● Pattern and color change effects with variable speed and fade time.
● Dimmer: high resolution dimmer 0~100%
● Control: configuration and addressing via an OLED display and 4 buttons.
● Dedicated channel for setting the color temperature 2200-8500K.
● Strobe effect: Variable speed (1-30 Hz)
● Voltage: AC 100~240 V, 50/60 Hz
● Horizontal hanging on Omega brackets
● Horizontal installation on the floor with Fast Lock bracket tilt locks
● Vertical installation on the floor with a base plate
● Hanging vertically is "dropped" using a vertical adapter.
● The case is made of refractory material.
● Degree of protection: IP20.
● Low noise level.
● Power Connector: PowerCon (input/output).
● Control Connector: 3 and 5-pin XLR (input/output).
● Power Consumption: 600W.
● Weight: 10 kg.
● Scope of delivery:
● Supplied in a transport case on 6 devices.
Scope of Delivery:
1) Clamp - 2 pcs.
2) Safety cable - 1 pc.
3) A bracket for connecting the device with a clamp - 2 pcs.
4) The PowerCon power cord.
5) PowerCon - PoweCON power cord (Link), cable length: 2 meters, cable cross-section: 3 x 1.5 mm².
