Model Name: PRC-LED350BSWQ
Professional 350W LED Moving Head Light – Precision & Versatility Redefined
Elevate your stage productions, concerts, and events with this high-performance 350W white LED moving head light, with a more than 20,000-hour service life, this fixture ensures long-lasting brilliance while reducing maintenance costs.
Key Features:

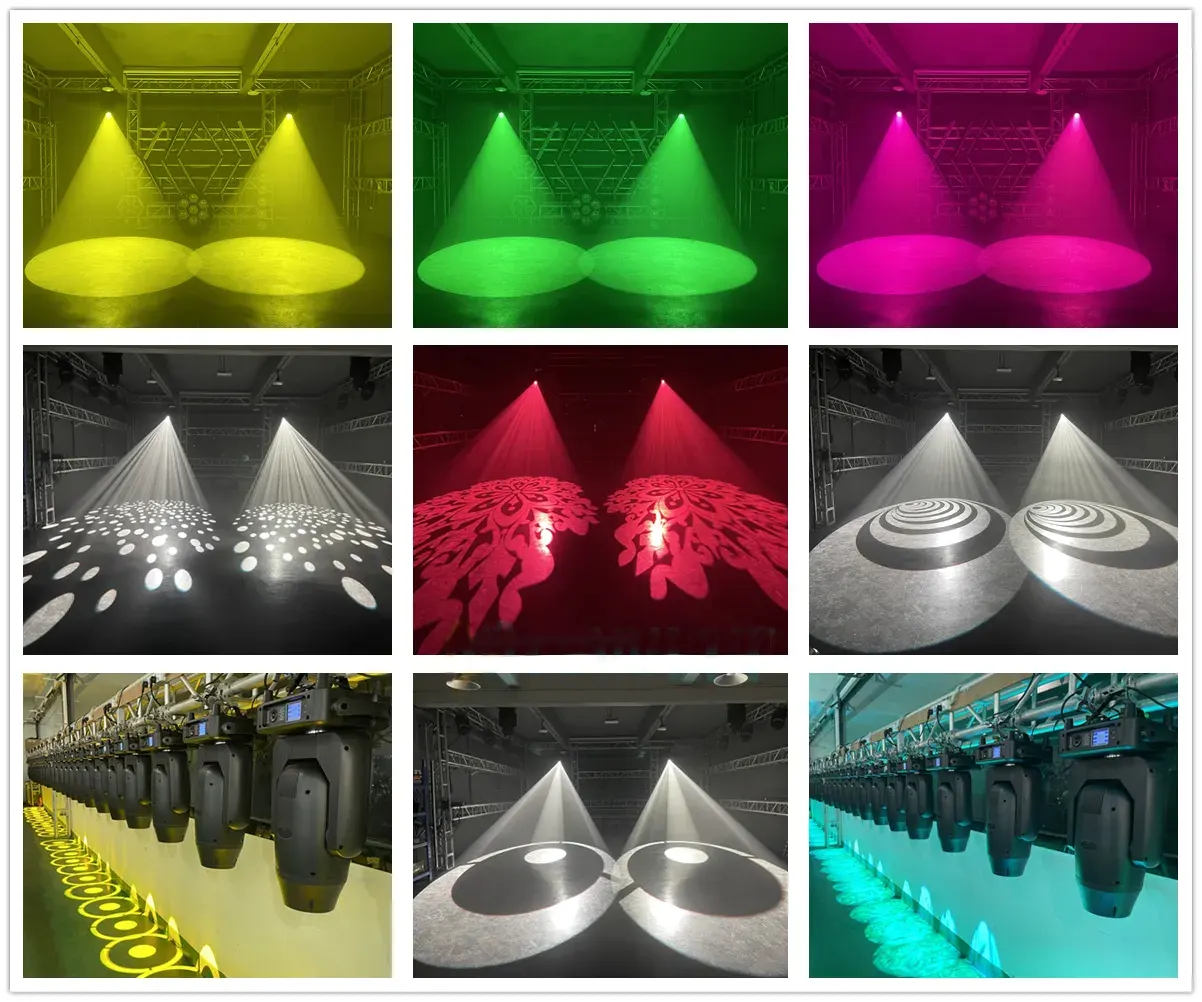

✔ Ultra-Precise Optics – Adjustable zoom (4°–50°), frost filters, and focus (4–50m) for sharp or soft beams.
✔ Advanced Color & Gobo System – CMY+CTO mixing, 8-color wheel, 12 static + 7 rotating gobos, and 6/8-facet prisms for dynamic effects.
✔ Smooth & Silent Movement – 540° horizontal / 270° vertical scanning with 16-bit precision for flawless motion.
✔ Professional Control – 23 DMX channels, RDM support, strobe (0–30Hz), macros, and master-slave mode.
✔ Robust & Reliable – IP20-rated, overheating protection, and PowerCon/XLR connectors for seamless integration.
Ideal for:
Concerts & Festivals – Command attention with piercing beams and vibrant colors.
Theatrical Shows – Create dramatic spotlights or soft washes with CMY mixing.
Architectural Lighting – Highlight large venues with long-throw projection.
Nightclubs & Events – Energize crowds with fast strobes and rotating gobos.
Specs: 350W, 22.5kg, 380×270×650mm. Voltage: AC110V–240V.
Unleash creativity—where light meets precision.
Model Name: PRC-LED350BSWQ

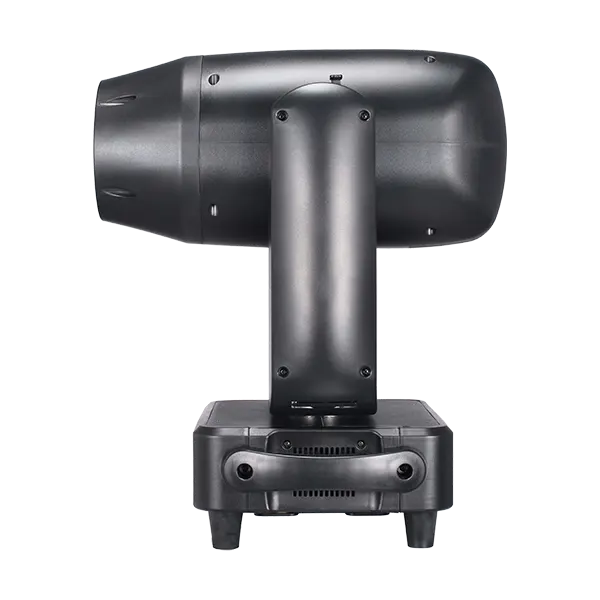

BSW Type Moving Head Light
● Light Source: White Power LED
350 Watts with a color temperature of 8200K.
● Service Life: More than 20,000 hours
● Rated power: 450W
● Channels: 23 channels
● Horizontal Scanning: 540° (16-bit precision scanning) electronic error correction.
● Vertical Scanning: 270° (16-bit precision scanning) electronic error correction.
● Dimmer: linear adjustment from 0 to 100%.
● Focus: Linear adjustment from 4 to 50 meters.
● Frost: 1 independent frost effect, soft and natural light spot.
● ZOOM: Zoom spot 4-35°, zoom wash 10-50°.
● Strobe Light: 0~30 times/sec. Strobe effect with adjustable speed. Strobe macro function.
● Color Wheel: 8 colors + open, the half-color function.
● Color Mixing System: CMY + CTO linear color mixing system.
● Static Gobo Wheel: 12 gobos + open.
● Rotating Gobo Wheel: 7 glass gobos, each gobo can move back and forth independently.
● The Prism: 1 piece 3-facet prism and 1 piece 8-facet prism, each prism can independently move back and forth.
● Macro Shooting Function: Console reset function, self-propelled mode, master-slave mode
● Display: LCD display, dual key + touch control
● Control: International DMX512 standard. With the RDM function, an online software update is available, dial the address code.
● Cooling: An axial fan is used to improve cooling.
● Safety Device: With electronic temperature control, overheating protection, automatic power off protection in case of overheating system failure.
● External Material: Heat-resistant plastic.
● Working Environment: -20℃~40℃
● Protection Level: IP20
● Input Voltage: AC110V~240V, 50/60Hz
● Rated Power: 430W
● Net Weight: 22.5kgs
● Size: L380×W270×H650mm
