19pcs×20W RGBW 4in1 LED Moving Head Wash ZOOM Light

Professional Lighting, Unmatched Versatility

Elevate any stage or venue with this high-performance LED moving head wash beam. Engineered with 19 powerful 20W RGBW 4-in-1 LEDs (50,000-hour lifespan), it delivers brilliant, consistent color mixing and a versatile 5.8° to 55° electronic zoom for everything from sharp beams to wide washes. With precise 540° horizontal and 270° vertical movement, 65536-step dimming, and high-speed strobe effects, it brings dynamic, professional-quality lighting to every performance.

Ideal for live concerts, theater productions, nightclubs, and event spaces, its robust ABS construction ensures reliable operation. Flexible control via DMX512, auto-run, or sound activation, combined with convenient PowerCon in/out and RDM support, makes setup and operation seamless for both touring and fixed installations.

Key Features for Impact:

  • 19 x 20W RGBW LEDs: Vibrant color output and long life.

  • 5.8° - 55° Zoom: Perfect hybrid beam & wash effects.

  • Precision Movement: 540° horizontal / 270° vertical for dynamic coverage.

  • Professional Control: DMX512, RDM, Master/Slave, and Sound-Activated.

  • Robust & Tour-Ready: PowerCon connectors, IP20 rating, and flight case options.

Transform your space with light that performs.

InquiryDownloadVideo
Share to
Detailed

Model Name: PRC-M1920B
Wash Moving Head light
Light Source: 19x20w RGBW LED
Service life: >50,000 hours
Zoom: 5.8°-55°
Dimmer: 0-100% (65536 levels, 4 curves)
Strobe: 1-25 Hz
Effects: Wash, Beam, pixel-by-pixel control, color and dynamic, macro effects
Pan: 540° (accuracy 2.1°/pitch, fine 0.008°)
Tilt: 270° (accuracy 0.86°/pitch, fine 0.0034°)
Pan/Tilt Auto Correction
DMX 512: (19/27 channels)
Automatic Mode, Sound Activation, Master/Slave, RDM
Power supply: AC 100-240 V, 50/60 Hz
Power consumption: 350W
Connectors: PowerCon in/out, XLR 3-pin/5-pin
Body: ABS plastic, heat resistant
Degree of protection: IP20
Dimensions: 338x254x375mm
Weight: 8.5 kg

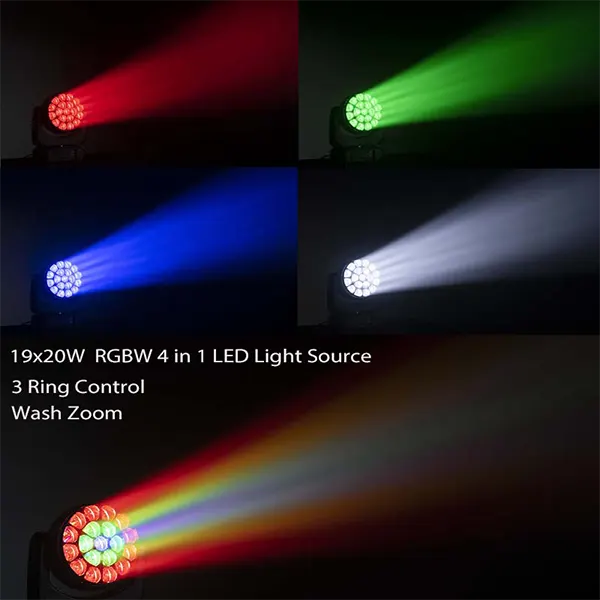

● Light Source: 19pcs x 20W RGBW 4-in-1 LEDs
● LED Lifespan: ≥ 50,000 hours
● Input Voltage: AC100V-240V, 50/60Hz
● Power Consumption: 400W Max.
● Power Factor PF≥0.95
● Electronic Zoom Angle: 5.8° - 55°, glass light guide rod + PMMA high-quality optical lens
● Control: DMX512, Auto-run, Master/Slave, Sound-Activated, Manual, RDM
● Channels: 19/27CH
● Protection Rating: IP20
● Display: 1.8-inch TFT LCD screen, 180° rotatable, switchable between Chinese and English
● Signal Input/Output: 3-pin & 5-pin XLR connectors
● Power Socket: PowerCon input/output
● Exterior Material: ABS high-temperature resistant engineering plastic
● Operating Temperature: -10℃ - 45℃
● Horizontal Movement: 540°, precision 2.11°/step, fine adjustment precision 0.008°
● Vertical Movement: 270°, precision 0.86°/step, fine adjustment precision 0.0034°
● Photoelectric Reset System: Precise automatic X-axis/Y-axis position correction
● Maximum Link Quantity: 230V: up to 8 units, requires 1.5mm² cable; 110V: up to 4 units, requires 1.5mm² cable
● Net Weight: 8.5kg
● Fixture Dimensions: 338*254*375mm
● Carton Packaging:
- Single unit: 420*335*460mm, gross weight 12kg
- Double unit: 690*440*480mm, gross weight 23kg
● Flight Case Packaging:
- Four units: 875×608×575mm, gross weight 70kg
● Effects: Full color mixing, 65536-level dimming precision; high-speed strobe 1-25Hz; three-ring LED control; combines wash and beam effects; preset multiple color macros; preset multiple effect macros
