Elevate Your Light Show with Uncompromising Power.
The PRC-M3740 High Quality Moving Head Wash Light redefines versatility. Powered by 37x40W RGBW 4-in-1 OSRAM LEDs, this fixture delivers a seamless transition from a 2° narrow beam to a 60° wide wash—giving you two fixtures in one. The bi-directional, limitless rotating front lens creates breathtaking aerial effects and seamless splicing, while the Kaleidoscope FX mode transforms any stage into a visual masterpiece.
Designed for the professionals. With 16-bit pan/tilt movement (540°/270°), 0-100% linear dimming, and multiple channel modes (up to 170CH), you get absolute control for intricate programming. Whether you are lighting up a concert arena, an outdoor festival, a TV studio, or a large nightclub, the PRC-M3740 delivers punch, speed, and reliability.
Built to last. Rated at a 50,000-hour lifetime and weighing only 26kg (net), this is the workhorse your touring rig has been waiting for.
Suggested Usage Scenarios (for your reference):
Live Concerts & Touring: Zoom from a tight beam for solos to a wide wash for chorus hits.
Nightclubs & DJ Sets: Use the FX Kaleidoscope and limitless lens rotation for immersive ceiling effects.
TV & Theatre: Silent, smooth 16-bit control for subtle color transitions.
Large Corporate Events: Clean, powerful RGBW mixing for elegant stage washing.
Model Name: PRC-M3740
Product Name: High Quality Moving Head Wash Light
● Voltage: AC100-240V, 50/60Hz;
● Power consumption 1560W;
● Light source: 37×40W RGBW 4-in-1 LEDs (manufactured by OSRAM);
● Service life: ≥50,000 hours;
● CRI index: Ra>70;

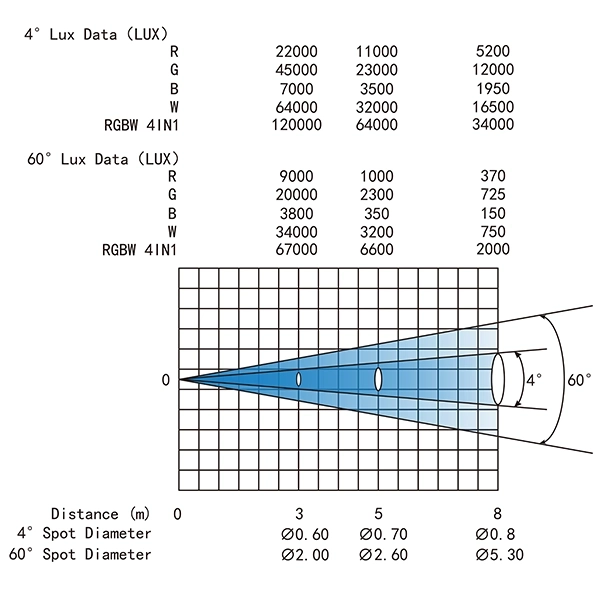

● Initial luminous flux: small angle (4°): more than 9525lm; large angle (60°): more than 18920lm;
● Efficiency: small angle (4°): 7.23lm/W; large angle (60°): 14.35lm/W;
● Unlimited RGBW color mixing with ready-to-use color presets;
● Color temperature adjustment range: 2800-8000K;
● Zoom angle: in the range from 7° to 55° (maximum opening 2°- 60°);
● Pan/Tilt: 540°/270°, 16-bit control, automatic return correction;
- pan accuracy: 2.11°/ fine 0.008°;
- tilt accuracy: 0.94° / fine 0.0037°;
● Operating modes: Fill, Beam, FX (Kaleidoscopic effects);
● Strobe tape effects: 1-25Hz strobe, 3 strobe effect options to choose from, jumps, built-in programs, color macros: 65 preset functions, effect macros: 64 preset functions;
● Brightness adjustment (dimming): linear electronic dimming from 0 to 100%;
- dimming accuracy: 65536 levels;
● Strobe light: Adjustable strobe light effect with adjustable speed and instant blackout function;
● Rotation: Bidirectional, unlimited (360°+);
● Channels: 22CH / 36CH / 133CH / 147CH /170CH
● Software: The ability to update the DMX
● Control modes: DMX512, sound activation, auto mode, master-slave, built-in programs (color and effects macros);
● Control connectors: 3-pin/5-pin XLR input/output;
● Power connector: PowerCon;
● Degree of protection: IP20;
● Operating temperature range: -0°C - 40°C;
● High-quality optical front lens made of PMMA;
- intelligent adjustment of light source power and fan speed;
- initial brightness can be adjusted for all colors;
- the function of restoring the position after mechanical impact;
- protection against overcurrent, overvoltage and overheating;
- Built-in battery;
- temperature sensor;
- two folding clamps for mounting fixtures on a farm with a diameter of 50 mm;
- hole for securing the safety rope;
● Net weight: 25.9kg;
● Total weight: 28 kg;
● Dimensions: 72.5×58.5×39.5 cm.
