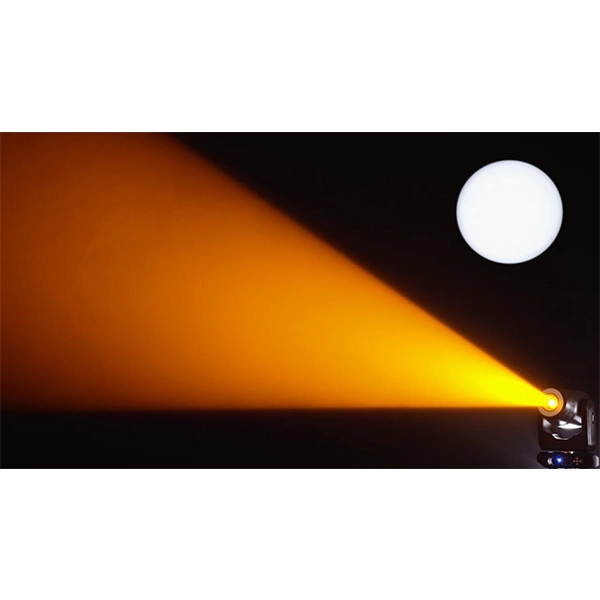

PRC-LED200PBSW Polar Light – 200W Polar Moving Head Light with Abyssal Effect
Engineered for designers who demand depth, color, and precision, the PRC-LED200PBSW combines a powerful 200W cool-white LED engine with a unique RGB auxiliary backlight—delivering striking “abyssal” aura effects that elevate any visual narrative. Whether you’re lighting a high-energy concert, an immersive theater production, or a large-scale corporate gala, this compact moving head brings bold, cinematic atmosphere to every scene.
Key performance highlights:
Rich optical layering – 7+1 color wheel, fixed and rotating gobo wheels (glass + metal), plus a bidirectional rotating prism and independent frost filter for soft washes or sharp beams.
Precision control – Linear zoom (10–20°), 0–100% dimming, variable strobe (0–25Hz), and 16-bit Pan/Tilt (540°/270°) with electronic error correction for silent, fluid movement.
Versatile operation – DMX512, RDM, auto, master/slave, and sound-active modes, all accessible via an intuitive LCD interface.
Built to last – >50,000-hour LED life, low power draw (250W), and lightweight design (7.4 kg) for easy rigging and touring.
Ideal for:
Live stages, nightclubs, TV studios, architectural events, and any production where dynamic gobo projection, rich color blending, and immersive backlight effects are essential.
Compact, powerful, and creatively limitless—the PRC-LED200PBSW turns your lighting vision into reality.
Model Name: PRC-LED200PBSW
Product Name: 200W Polar Moving Head Light with Abyssal Effect
● Input Voltage: AC100V~240V, 50/60Hz
● Light Source: 200W LED
● Auxiliary Backlight: 24pcs×0.2W RGB 3in1 5050 LED
● Light Source Life: >50,000 hours
● Power Consumption: 250W
● Dimming: Linear adjustment 0-100%
● Strobe Light: 0-25Hz, synchronous, pulsating effects, adjustable speed
● Focus: Linear focus by DMX
● Zoom (Beam opening angle): 10~20°
● Color Wheel: 7 colors + open position, full-color/half-color modes, bidirectional rainbow effect with adjustable speed, built-in Hall sensor
● Fixed Gobo Wheel: 7 fixed stencils + open position, Gobo Shake (jitter) and Flow (bidirectional rainbow running flow with adjustable speed) effects, built-in Hall sensor
● Rotating Gobo Wheel: 5 glass stencils + 2 metal stencils, independent rotation of each gobo clockwise and counterclockwise, built-in hall sensor
● Prism Wheel: 1 triangular prism with bidirectional rotation and adjustable speed, Index function.
● Panorama/Tilt (Pan/Tilt): 540° / 270°, accurate 16-bit scanning, electronic error correction
● Frost Filter: 1 independent frost effect to create a soft and natural light spot
● Control Channels: 19CH

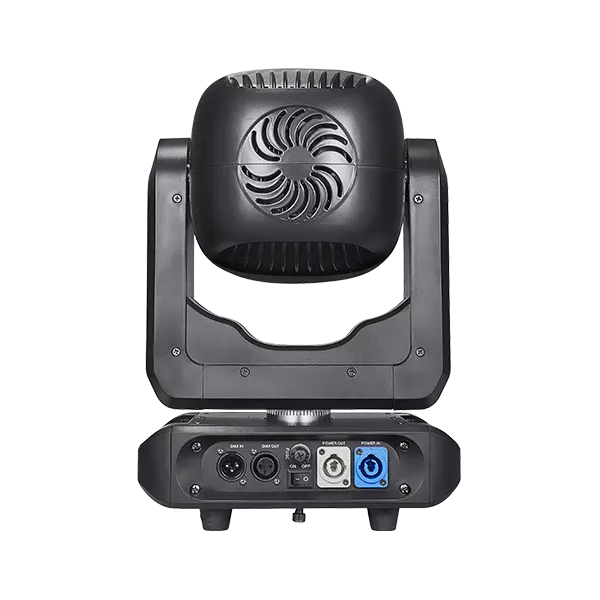

● Display: LCD screen + control buttons
● Control Modes: DMX512, RDM, Auto mode, Master/Slave, Sound active
● Net Weight: 7.4 kg
● Gross Weight: 8.5 kg (1 piece per pack); 20.0 kg (2 pieces in the case/box)
● Device Dimensions: 350×265×450mm
● Package Dimensions: 660×360×500mm (box for 2 devices)
