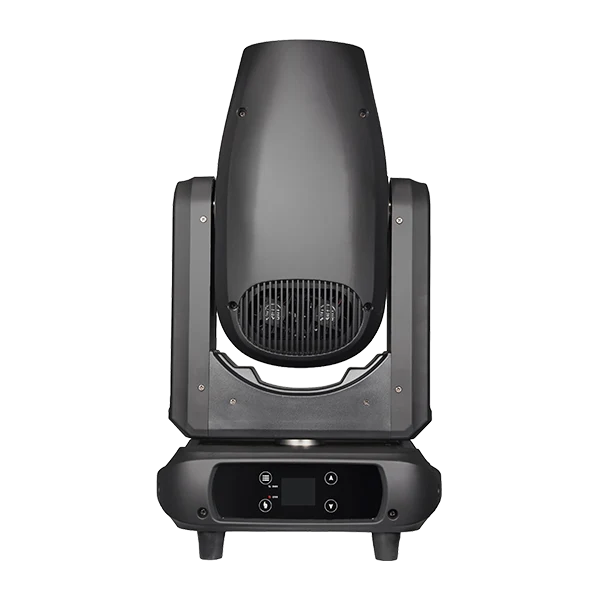

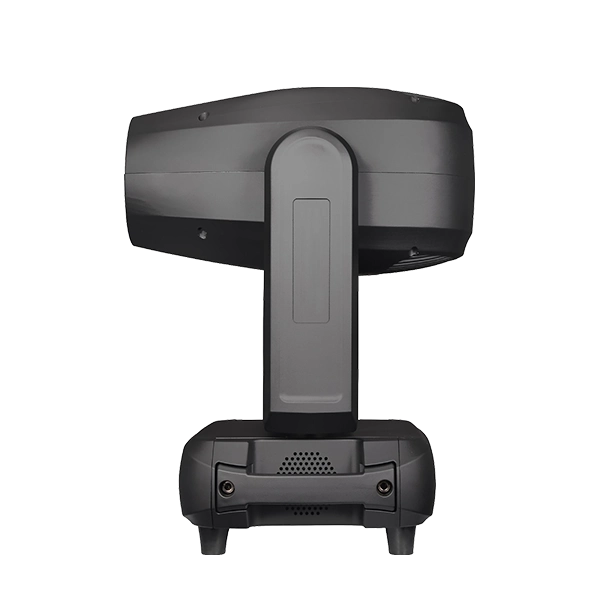

PRC-LED200BSW – 200W LED Moving Head Spot with CMY/CTO
Compact yet powerful, this 180W LED moving head delivers professional-grade color control with built-in RGB and CMY color systems, plus a dedicated CTO wheel for accurate color temperature adjustment. Its 5–32° linear zoom offers smooth transitions from tight spots to wide coverage, while the 7+1 color wheel, static and rotating gobo wheels (6+1 each), and a bidirectional pentagonal prism add endless creative layering.
Designed for silent operation with an active low-noise cooling system, it features 16-bit Pan/Tilt (540°/270°) with digital position correction for flawless tracking. Flexible DMX control (11/22 channels) and multiple operating modes (Auto, Sound, Master/Slave) make it equally at home in fast-paced live rigs or permanent installations.
Perfect for: theaters, live music venues, TV studios, weddings, and corporate events—wherever precise color mixing, quiet performance, and compact footprint are critical.
Big power, small size, infinite creativity.
Model Name: PRC-LED200BSW
Product Name: 200W LED Moving Head Spot CMY CTO
● Light Source: One 180W LED
● Color System: RGB, CMY
● Beam Opening Angle: Range 5-32 degrees
● Color Wheel: Seven colors + open, as well as the presence of seven dual colors
● Static Gobo Wheel: 7 Gobos + open
● Rotating Gobo Wheel: 6 Gobos + open
● The prism is pentahedral with the ability to adjust the speed and direction of rotation
● The linear dimmer is 0-100%
● Strobe Light: 25 Hz electronic strobe light, macros available
● Pan Rotation ("Pan"): 540° (16 bit)
● Vertical Rotation ("Tilt"): 270° (16 bit)
● The presence of a digital positioning correction function after external exposure
● Active low-noise fan cooling system

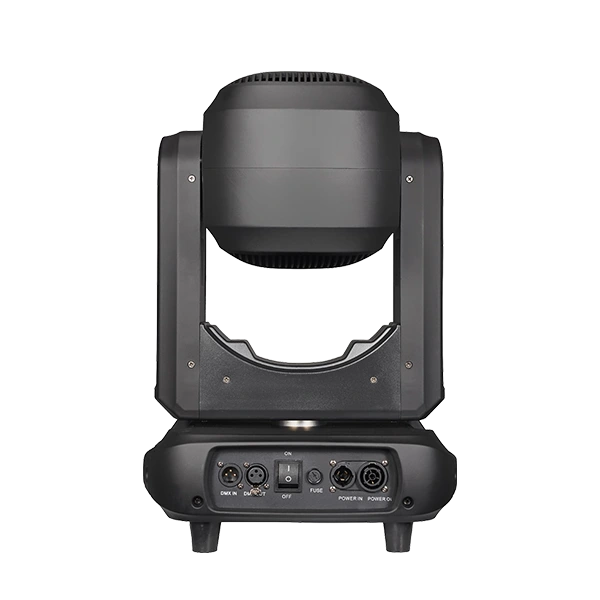

● Connector: SP XLR (M/F) input/output
● There are 2 modes for controlling the device
● Configuration of Control Channels: The first mode - 11ch, The second mode - 22ch
● Control Protocols: DMX512
● Operating Modes: DMX512/Auto/Sound/ Master/Slave/Manual
● Power Connector: PowerCon
● Power Consumption: 180W
● Power Supply: AC 100-240 V/50-60 Hz
● Body Material: Impact-resistant plastic
● Fixture Dimensions: 300x250x365mm
● Net Weight: 7 kg
