The 600W LED Moving Head Profile is a professional-grade luminaire engineered for high-output performance and precise beam control. Featuring a 600W 6500K LED module, a 136 mm output lens, and an impressive 143,000 Lux @ 5m, it delivers brilliant, consistent illumination for demanding productions. With a 3.5°–45° linear high-speed zoom, CMY infinite color mixing, linear CTO correction, a 7-color wheel, a rotating gobo wheel, and four independently controllable framing shutters, it gives lighting designers complete creative freedom across stage, studio, and live event applications.

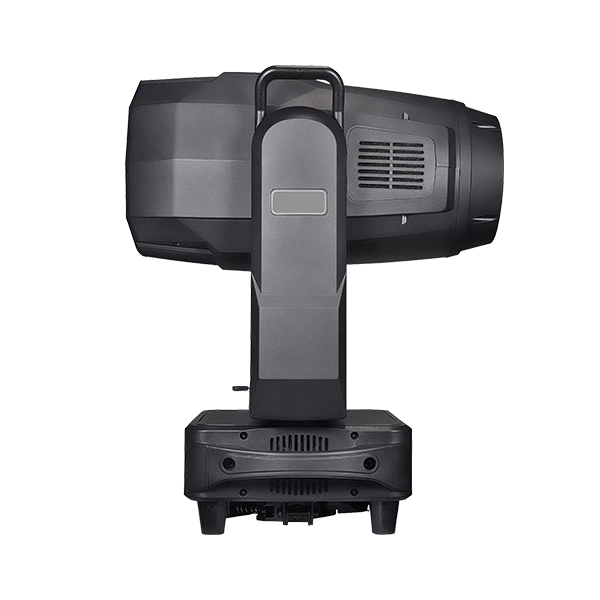

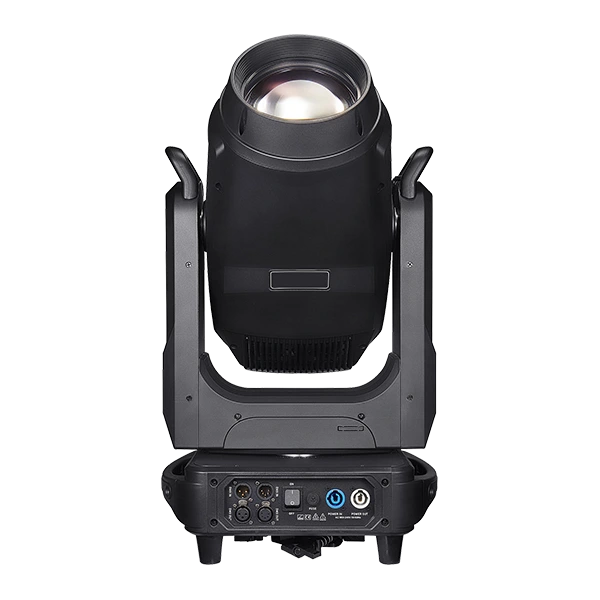

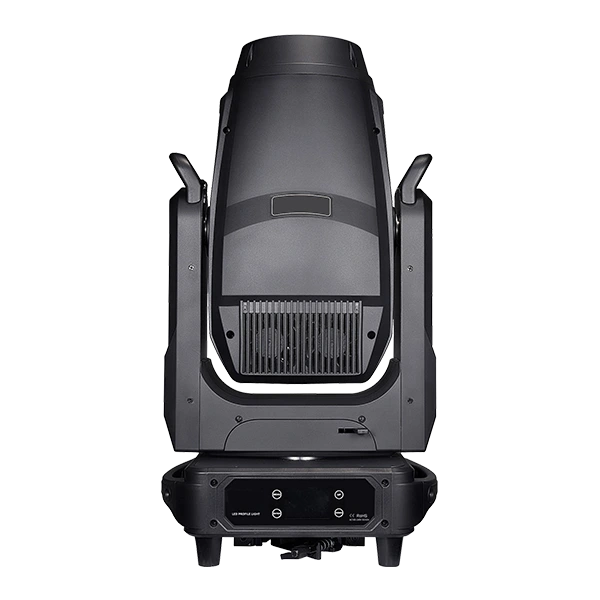

Name: 600W LED Moving Head BSW Framing Light
Model: PRC-LED600BSWF
● Input Voltage: AC 100V–240V, 50/60Hz
● Light Source: 600W LED module
● Color Temperature: 6500K
● LED Service Life: ≥20,000 hours
● Power Consumption: 810W
● Fuse: 250V 10A
● CRI: Standard mode Ra＞70 / High CRI mode Ra＞90 (switchable)
● Zoom Range: 3.5°–45° linear high-speed zoom
● Output Lens Diameter: 136 mm
● Illuminance: 143,000 Lux @ 5m
● CMY Color Mixing: CMY infinite color mixing system
● CTO System: Linear CTO color temperature correction (2600K–7300K)
● Color Wheel: 1 independent color wheel with 7 colors + open, supports stepped & linear color transition, adjustable rainbow effect
● Framing Cutting System: 4 independently controllable framing shutters for precise beam shaping and geometric graphics, ±120° rotatable
● Rotating Gobo Wheel: 7 interchangeable rotating glass gobos + open, each with independent bidirectional rotation
● Fixed Gobo Wheel: 11 metal gobos + open, equipped with variable-speed shake effect
● Animation Wheel: Independent animation wheel, simulating dynamic flame, flowing water and other kinetic effects
● Prism: 1×4-facet prism + 1×4-facet linear prism, separately bidirectional rotatable
● Dimmer: 0–100% smooth linear dimming
● Strobe: Variable-speed electronic strobe
● Frost Filter: 1 independent frost filter for soft uniform beam output
● Motorized iris: 5–100% fast linear adjustment
● Movement: Pan - 540°, Tilt - 270°, auto reposition, 32-bit fine resolution, magnetic encoder for accurate positioning
● DMX Channels: 39CH / 41CH
● Control Protocol: DMX512, RDM, Automatic, Manual (NFC & Art-Net optional)
● Signal Connector: 3-pin & 5-pin XLR input & output
● Display: 2.4-inch touch screen, Chinese & English bilingual UI, 180° reversible display
● Power-Saving Sleep Mode: Auto sleep when signal lost
● Firmware Upgrade: Supports via DMX cable
● Cooling System: High-efficiency copper heat pipe cooling; intelligent variable-speed fan; built-in temperature sensor with automatic temperature control
● Housing Material: Flame-retardant high-temperature resistant nylon
● Mounting: Integrated folding Omega bracket
● Operating Temperature: -20°C ~ 45°C
● Waterproofing Grade: IP20
● Fixture Size: (L×W×H): 38.5 × 27 × 69 cm
● Packing Size: (L×W×H): 82 × 40 × 55 cm
● Net Weight: 27.5 kg
● Gross Weight: 33 kg
