500W LED Moving Head Beam Spot Wash 3-in-1 Light

500W LED Moving Head Beam Spot Wash 3-in-1 Light

LED500BSWE-2

LED500BSWE-3

LED500BSWE-4

LED500BSWE-5

LED500BSWE-6

LED500BSWE-7

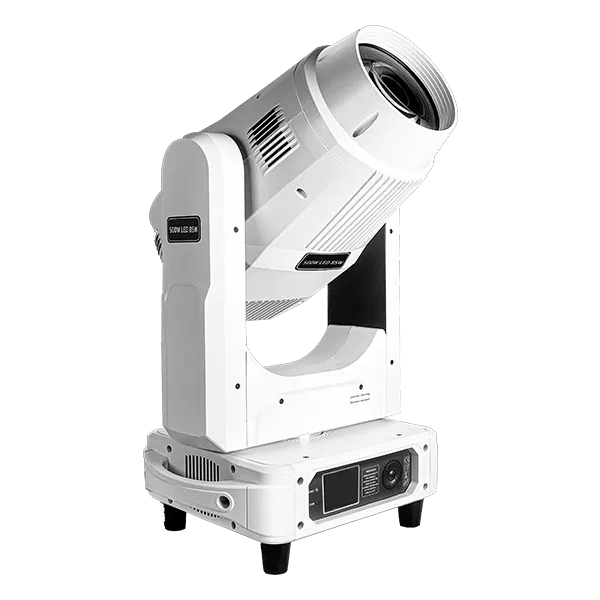

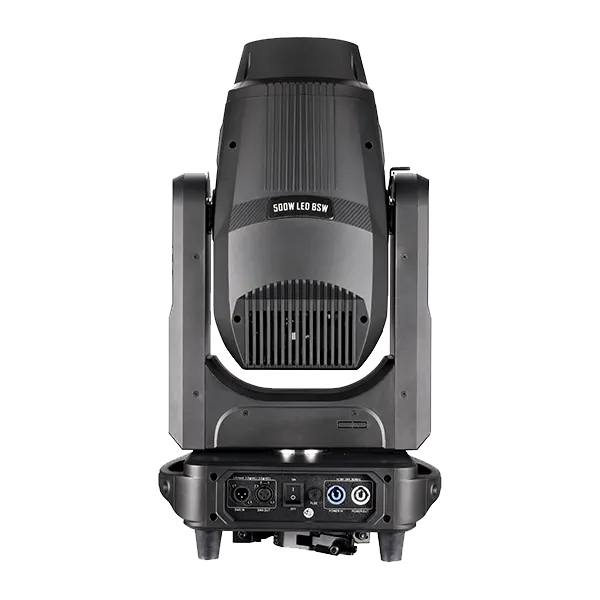

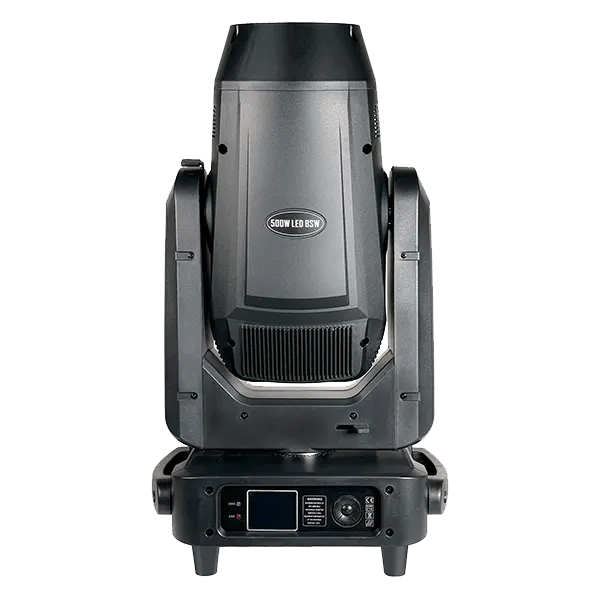

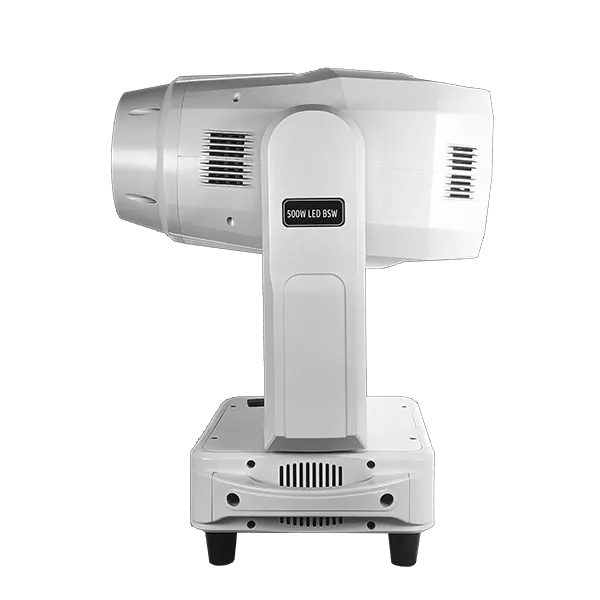

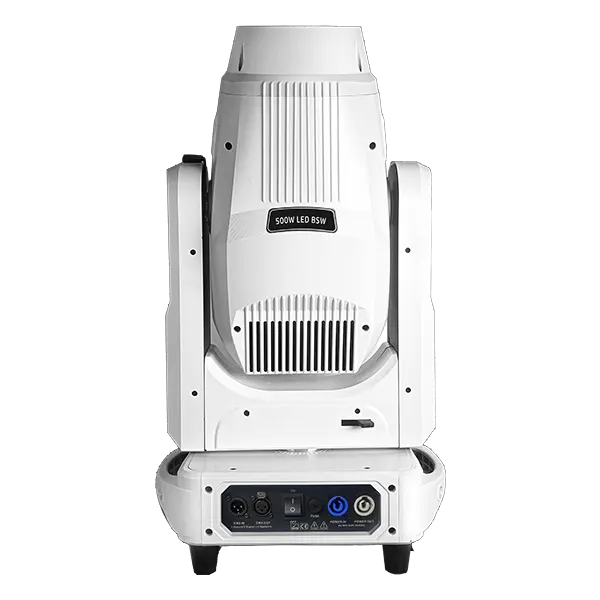

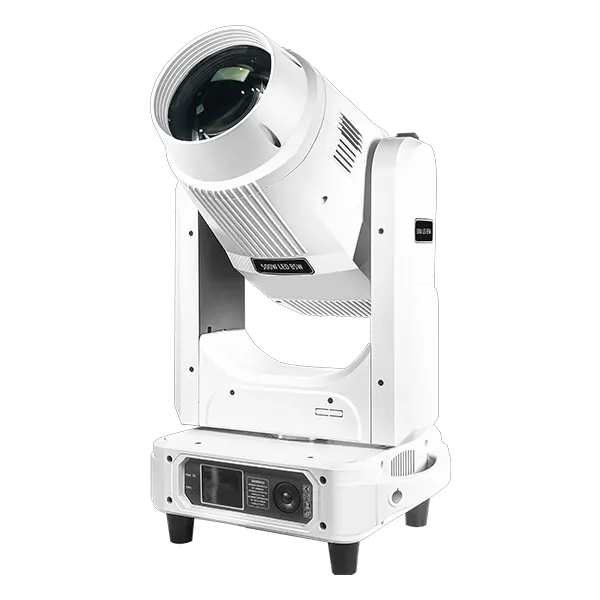

500W LED Moving Head Beam Spot Wash 3-in-1 Light

The Ultimate LED Moving Head Light – Power, Precision, and Performance!

Elevate your stage lighting with our high-performance 600W LED Moving Head Light, designed for unmatched versatility and brilliance.

Key Features:
✨ 500W High-Output LED Module – Delivers stunning brightness with a 20,000-hour lifespan, saving energy without compromise.

"Experience next-level lighting control with this powerful 500W LED moving head—featuring a 3.5°-50° motorized zoom, ultra-smooth 540°/270° pan/tilt, and advanced CMY+CTO color mixing. With 11 fixed + 7 rotating gobos, 8-facet prism effects, and 30Hz high-speed strobe, it delivers stunning versatility for stages and events. The 2.8" flip touchscreen, RDM-enabled DMX512 control, and rugged 22.7kg design ensure professional-grade performance wherever creativity takes you."

(Key selling points: High-output LED, precision optics, intuitive control, and pro rigging durability—all in one fixture.)

InquiryDownloadVideo
Share to
Detailed
Moving head type "Beam/Spot/Wash" light device.
● Light source: 500W LED module
Illumination at a beam angle of 3° at a distance of 5 meters is 114,000 lux
Illumination at a beam angle of 50° at a distance of 5 meters is 1875 lux
Illumination at a beam angle of 3° at a distance of 10 meters is 28670 lux
Illumination at a beam angle of 50° at a distance of 10 meters is 470 lux
● Light source life: 20,000 hours
● Rated power: 400W
● Channels: 23/25 channels
● Pan/Tilt: 540°/270°, 16-bit precision scan, electronic error correction
● Brightness adjustment: linear adjustment from 0 to 100%
● Focus: linear adjustment from 4 to 50 meters
● Frost: 0 - 100% linear, blurred beam effect, soft and natural light spot
● Linear motorized zoom with autofocus: 3-50 degrees
● High-speed strobe light: 0~30 times per second, adjustable
● Color: 8 colors + open
● Color mixing system: CMY + CTO linear color mixing system
● Fixed gobos: 11 pieces of fixed gobos + open
● Rotating gobos: 8 glass gobos + open, each glass pattern can be independently pointed back and forth
● Prism: Standard 8-face prism and 6-face prism, each prism can be independently rotated back and forth
● Macro function: console reset function, offline mode, master-slave mode
● Display: 2.8-inch touch screen + keyboard controls, bilingual operating system, 180° rotation of the display
● Control signal: International DMX512 standard. Using the RDM function, you can update the software online by typing address codes, ArtNet (optional)
● Turn and tilt lock
● Input voltage: 90V~240V AC, 50/60Hz
● Connection connectors for XLR3p/ XLR5p control input/output (optional)
● Neutrik PowerCon IN/OUT power connection connectors
● Net weight: 22 kg
● Product size: 38 * 27 * 67 See
● Carton packing size: 75 * 36 * 47 cm/piece
● Gross weight (carton): 27 kg
● Packing size in the case: 101 * 48 * 79 cm/2 pcs
● Gross weight (flight case): 86 kg/2 pcs.
The kit includes materials for installation and connection of the device:
1) 1.5meter power cable – 1 pc.
2) Safety rope – 1 pc.
3) 1.5 meter long DMX cable with XLR3p/XLR5p connectors installed
